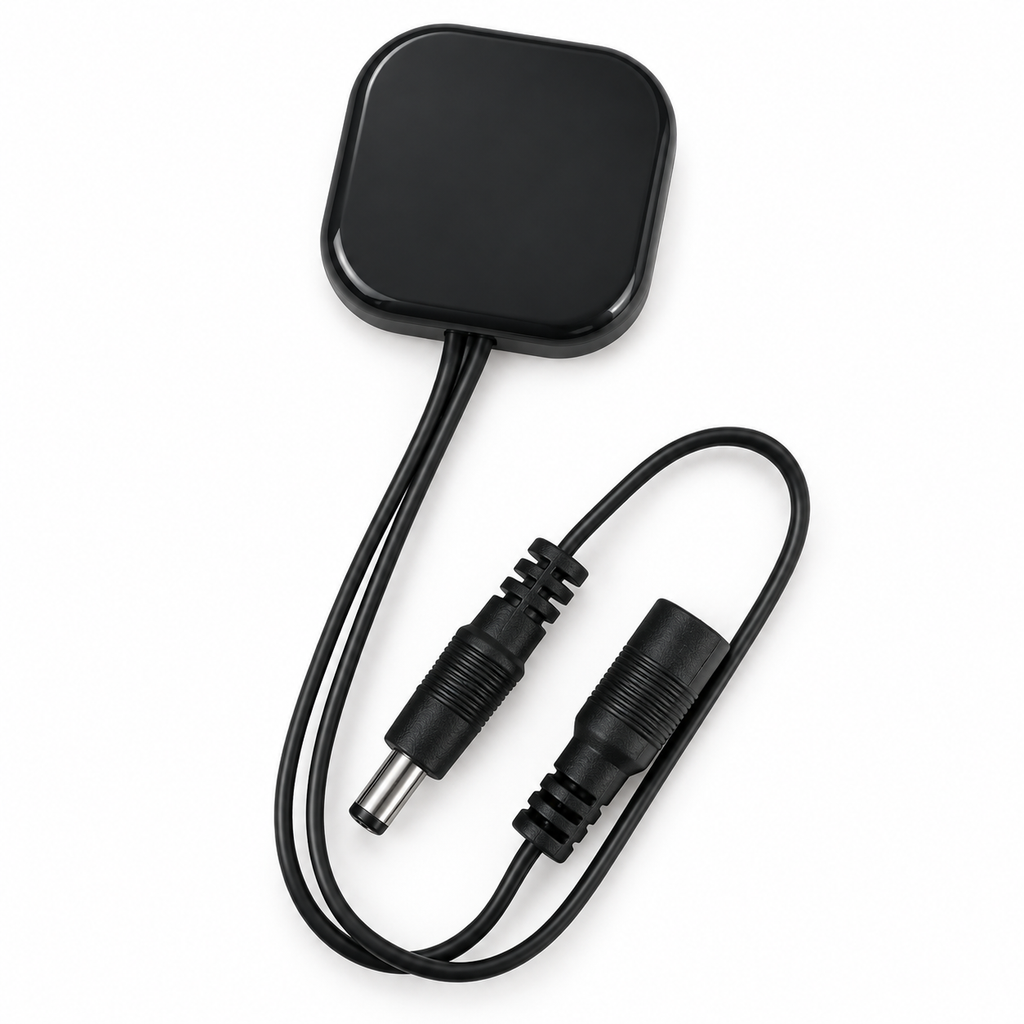

Control your LED lighting with a simple hand waving. This compact touch-sensitive dimmer works as both an on/off switch and brightness controller for compatible 12V and 24V DC LED lighting systems.
The sensor can detect touch through non-metallic surfaces up to 25 mm thick, making it suitable for concealed installation behind wood, glass, marble, and similar materials. A quick touch turns the light on or off, while pressing and holding the panel adjusts the brightness.
Its slim, discreet design is ideal for cabinets, furniture, shelving, displays, closets, and custom LED lighting installations.
Key Features
Touch-sensitive on/off control
Press and hold to adjust brightness
Works through non-metallic surfaces up to 25 mm thick
Compatible with 12V and 24V DC LED lighting
Maximum current: 5A
Maximum output power: 60W
Compact, low-profile design
Durable ABS housing
Male and female DC barrel connectors for easy inline installation
Fast and responsive operation
Specifications
Input Voltage: DC 12V / DC 24V
Maximum Current: 5A
Maximum Output Power: 60W
Detection Range: Up to 25 mm
Housing Material: ABS
Operating Temperature: -10°C to 50°C
Operating Humidity: 5%–90% RH
Dimensions: 48 × 48 × 6 mm
Weight: 0.05 kg
Color: Black
How to Use
Connect the dimmer between a compatible DC power adapter and the LED light.
Quickly touch the sensor panel to turn the light on or off.
Touch and hold the panel for more than two seconds to increase or decrease the brightness.
Package Includes
1 × Touch LED Dimmer Switch
Important
Designed for low-voltage 12V/24V DC LED systems. Confirm that the voltage, current, connector type, and polarity of your power supply and LED light are compatible before installation.
